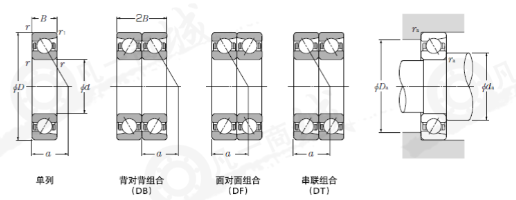

Boundary Dimensions
d 10 mm Bore diameter
D 26 mm Outside diameter
B 8 mm Width
r(min.) 0.3 mm Chamfer Dimension
r1(min.) 0.15 mm Chamfer Dimension
Basic Load Ratings
Cr 6.70 kN Basic Dynamic Load Rating
C0r 2.49 kN Basic Static Load Rating
Speeds
Grease 63900 min-1 Limiting Speed
Oil (Oil-air) 97300 min-1 Limiting Speed
Dimensions
C: 15° Contact Angle
a 6.4 mm Effective Load Center
Abutment and Fillet Dimensions
da(min.) 12.5 mm Diameter of Shaft Abutment
Da(max.) 23.5 mm Diameter of Housing Abutment
Db(max.) 24.8 mm Diameter of Housing Abutment
ra(max.) 0.3 mm Radius of Shaft or Housing Fillet
rb(max.) 0.15 mm Radius of Shaft or Housing Fillet
Performance
Pa 2.16 kN Permissible Axial Load
Calculation factors
f0 12.6 Factor
Preload,Rigidity(DB and DF arrangement)
Preload Axial Rigidity Measured axial clearance
EL 13N 13N/μm 3μm
L 25N 17N/μm 0μm
M 49N 23N/μm -5μm
H 96N 31N/μm -12μm
Additional information
0.12 g/brg Recommended Grease Quantities
Mass
0.019 kg Mass(approx.)

<>ZWZ 7000C DB DF DT
