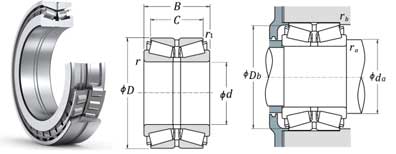

Boundary Dimensions
d 120 mm Bore diameter
D 215 mm Outside diameter
B2 97 mm Total width
C 78 mm Width of outer ring
r (min.) 3 mm Chamfer dimension
r1 (min.) 1 mm Chamfer dimension
Basic Load Ratings
Cr 660000 N Basic dynamic load rating
C0r 800000 N Basic static load rating
Speeds
Grease 1300 min-1 Grease lubrication
Oil (Oil-bath) 1800 min-1 Oil-bath lubrication
Abutment and Fillet Dimensions
da (min.) 138 mm Diameter of shaft abutment
rb (max.) 0.8 mm Radius of housing fillet of outer ring
Db (min.) 207 mm Minimum width of space required in housing on large side face
ra (max.) 2 mm Radius of shaft fillet of inner ring
Calculation factors
e 0.42 Constant
Y2 2.4 Axial load Factors
Y3 1.6 Axial load Factors
Y0 1.6 Axial load Factors
Mass
(approx.) 12.8 kg
120KBE42X+L bearing
