SKF NNU 4164 F Bearings wholesale price | On sale
Most favorable price : sales@hellerbearings.com
Bore diameter 320 mm
Outside diameter 540 mm
Width 218 mm
Product net weight 202 kg
Basic dynamic load rating 3 690 kN
Basic static load rating 6 200 kN
Reference speed 1 000 r/min
Limiting speed 1 300 r/min

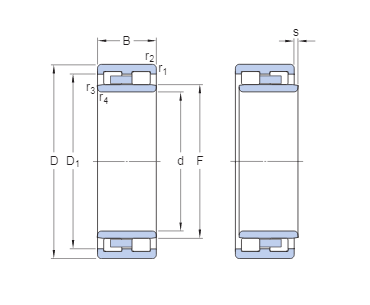

d
320 mm Bore diameter
D
540 mm Outside diameter
B
218 mm Overall bearing width
D1
≈476 mm Shoulder diameter outer ring
F
375 mm Raceway diameter inner ring
r1,2
min.5 mm Chamfer dimension outer ring
r3,4
min.5 mm Chamfer dimension inner ring
s
max.8.9 mm Permissible axial displacement from the normal position of one bearing ring relative to the other
<>SKF NNU 4164 F
234407BM 234706BM 234406BM 517/2860V/YA 5610/2500 517/1720X1V 527/1181M 510/1180M 517/930 510/670 590/560 510/500 52780 59080 517/368M 51760U 517/238 6207-2ZN 6206-2ZN 6205-2ZN 6204-2ZN 6203-RZ 6203-2ZN 6202N 6202-2ZN 6201-2ZN 6200ZZ 6200-2ZN 62/32-ZN 62/32-Z 62/32N 62/32-2Z 62/32-2RZ 62/32-2RS 62/28-2RZ 62/22-2RZ 61996 61992 61988 61984
We can provide free samples . Please contact Email for any inquiries
Bore diameter 320 mm
Outside diameter 540 mm
Width 218 mm
Product net weight 202 kg
Basic dynamic load rating 3 690 kN
Basic static load rating 6 200 kN
Reference speed 1 000 r/min
Limiting speed 1 300 r/min
d
320 mm Bore diameter
D
540 mm Outside diameter
B
218 mm Overall bearing width
D1
≈476 mm Shoulder diameter outer ring
F
375 mm Raceway diameter inner ring
r1,2
min.5 mm Chamfer dimension outer ring
r3,4
min.5 mm Chamfer dimension inner ring
s
max.8.9 mm Permissible axial displacement from the normal position of one bearing ring relative to the other
<>SKF NNU 4164 F
