Specifications:



Series: LM48500
Cone Part Number: LM48548
Cup Part Number: LM48510
Design Units: Imperical
Bearing Weight: 0.20Kg(0.51lb)
Cage type: Stamped Steel

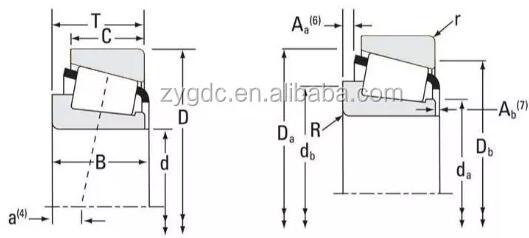

 Dimensions:
d - Bore: 34.925mm (1.375 in)
D - Cup Outer Diameter: 65.088mm (2.5625in)
B - Cone Width: 18.288mm (0.7200 in)
C - Cup Width: 13.970mm (0.5500 in)
T - Bearing Width: 18.037mm (0.7101 in)


Abutment and Fillet Dimensions:

R - Cone Backface "To Clear" Radius1: 3.560 mm
0.14 in
r - Cup Backface "To Clear" Radius2: 1.27mm
0.050 in
da - Cone Frontface Backing Diameter: 39.88mm
1.57 in
db - Cone Backface Backing Diameter: 45.97mm
1.81 in
Da - Cup Frontface Backing Diameter: 61mm
2.44in
Db - Cup Backface Backing Diameter: 57.91mm
2.28in
Ab - Cage-Cone Frontface Clearance: 2mm
0.08 in
Aa - Cage-Cone Backface Clearance: 0.3mm
0.01 in
a - Effective Center Location3: -3.6mm
-0.14in
