FAG 7217BTVP 7217-B-XL-TVP bearings Angular Contact Ball Bearing
Most favorable price : sales@hellerbearings.com
234407BM 234706BM 234406BM 517/2860V/YA 5610/2500 517/1720X1V 527/1181M 510/1180M 517/930 510/670 590/560 510/500 52780 59080 517/368M 51760U 517/238 6207-2ZN 6206-2ZN 6205-2ZN 6204-2ZN 6203-RZ 6203-2ZN 6202N 6202-2ZN 6201-2ZN 6200ZZ 6200-2ZN 62/32-ZN 62/32-Z 62/32N 62/32-2Z 62/32-2RZ 62/32-2RS 62/28-2RZ 62/22-2RZ 61996 61992 61988 61984
We can provide free samples . Please contact Email for any inquiries

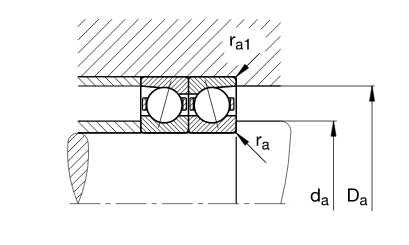

| d | 85 mm | |
| D | 150 mm | |
| B | 28 mm |
a 63 mm
D1 125 mm
Da max 139 mm
Db max 144,4 mm
d1 110,6 mm
da min 96 mm
r1 min 1 mm
ra max 2 mm
ra1 max 1 mm
rmin 2 mm
α 40 ° Contact angle
m 1,82 kg Mass
Cr 97000 N Basic dynamic load rating, radial
C0r 86000 N Basic static load rating, radial
Cur 5500 N Fatigue limit load, radial
nG 5400 1/min Limiting speed
nϑr 4750 1/min Reference speed
